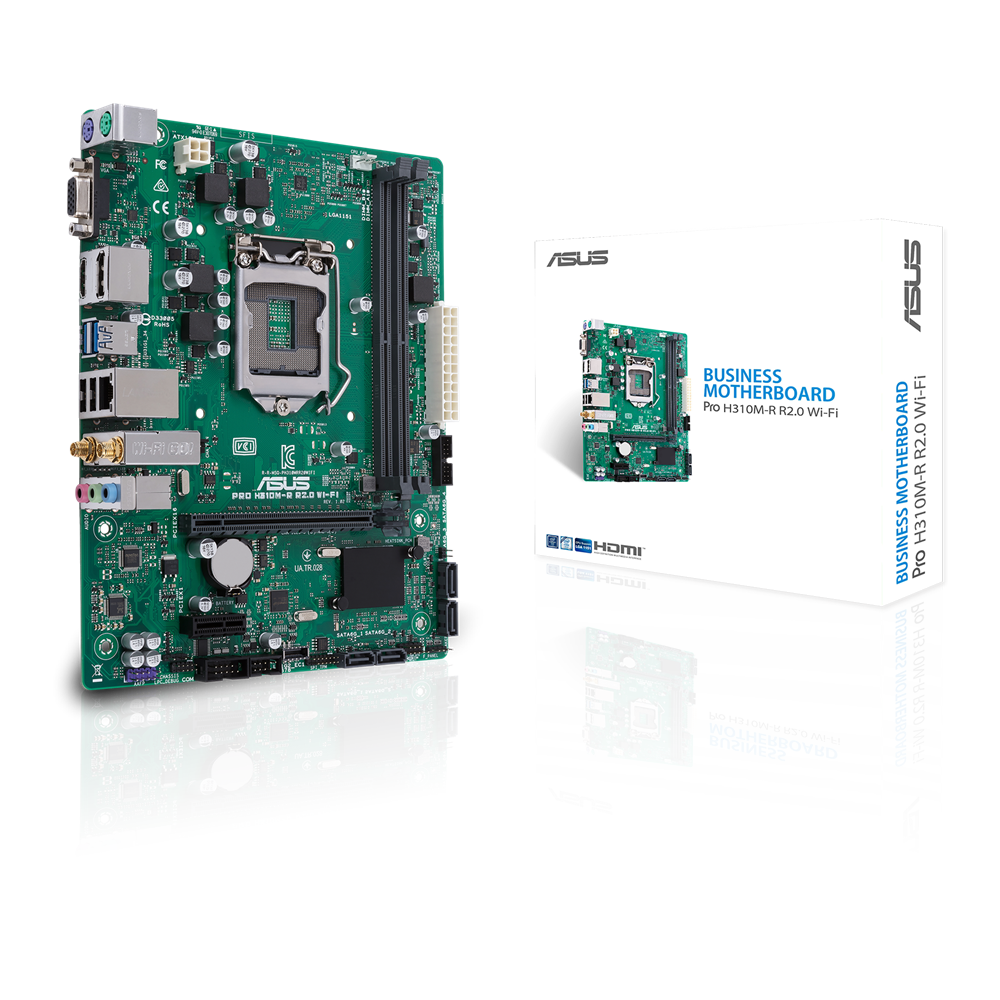

Pro H310M-R R2.0 WI-FI
Intel Micro-ATX H310 business motherboard with USB 3.1 Gen 2 type C and Wi-Fi, plus enhanced security, reliability and manageability for TCO reduction
- ASUS-exclusive self-recovering Bioses technology for automatic system Bioses recovery from a verified backup
- ASUS LPC debug header for more efficient troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Commercial Bioses kit to make customization faster and more efficient
Jämför
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization.
Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
1
PS/2
2
D-Sub
3
HDMI
4
DP
5
USB 3.1 Gen 1
6
LAN
7
USB2.0
8
1 x 1 Dual Band
WI-Fi + BT 5.0
WI-Fi + BT 5.0
9
Audio
10
COM
11
USB 3.1 Gen 2 TYPE C
12
DDR4 2666/2600/2133 MHz
13
Intel® LGA 1151 Socket
14
PCIE 3.0/2.0 x 16
15
Intel® H310 Chipset
16
PCIE 3.0/2.0 x 1
17
4 x SATA 6G/s Ports
18
SPI TPM
Internationally Certified Business Motherboard
ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.
ASUS Shield
Enhances system security from bottom to top
ASUS Self-recovering Bioses
ASUS-exclusive Bioses protection technology automatically recovers the system Bioses with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
LEARN MORE
ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.
Trusted Platform Module (TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.
Certified NIST SP 800-147
ASUS business motherboard is certified by the national computer security standards.
ASUS Self-recovering Bioses
With ASUS Self-recovering Bioses
The user simply needs one step to restore the latest Bioses update.
-
Benefits
-
Ensures safe Bioses updates
-
Reduces maintenance frequency and costs
-
Requires no extra software
-
Provides automatic update failure detection and recovery
Standard process for Bioses update crash recovery
The user needs four steps to reinstall the Bioses update:
CLOSE
ASUS Reliant
Ensures consistent performance with the finest components and rigorous reliability testing
USB 3.1 Gen 2 Type-C
Ultrafast 10Gbps data-transfer speeds with USB 3.1 Gen 2
Onboard USB 3.1 Gen 2 Type-C™ ports provide ultimate connection flexibility, ultrafast data-transfer speeds of up to 10Gbps and convenient, reversible connectivity.
802.11ac Wi-Fi
Fastest onboard Wi-Fi up to 433.3Mbps
Pro H310M-R R2.0 Wi-Fi has 802.11ac Wi-Fi with 1x1 2.4/5GHz antennas for up to 433.3Mbps* transfer speeds to ensure that every connected user experiences the best wireless and online speeds!
*Actual speed varies, and depends on networking conditions.
ASUS Trouble Shooting Solution
ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost effective.
* Please contact your local sales representative for debug card information.
* LPC debug card sold separately.
24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different locations.
Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.
Anti-sulfur Resistors
Consider long-term reliability of commercial product, ASUS business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS business motherboard can be operated under the harsh environments.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
ASUS Management Suite
Makes customization and management more efficient
Event Log
A built-in event log enables easier troubleshooting by capturing useful system information
-
Bioses updates
Update status, latest version and update time
-
AC power loss
Abnormal power loss events
-
RTC reset
Time of real-time-clock (RTC) reset
-
Chassis intrusion
Record of when chassis is opened
-
Hardware changes
Modifications to CPU, memory or HDDs
-
Hardware status
USB over current, CPU over temperature, and CPU over voltage events
ASUS Commercial Bioses Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial Bioses Kit for partial Bioses update solution!
-
Bioses Value Edit Tool
Customize the Bioses options
-
Bioses Boot Logo Tool
Brand your builds with a customized boot logo
-
OEM Activation (OA) Tools
Add or remove the OEM Activation key
-
Desktop Management Interface (DMI)
Easily add customer information, such as company name, to the Bioses
-
Intel® Management Engine (Intel® ME) Driver
Update the Management Engine without flashing the whole Bioses
Easy Assembly
Box Headers
All USB 3.1 Gen 1 and 2.0 headers are box style, enabling fast connector installation and preventing pin damage.
Fixed-position ConnectorsConnector positions on ASUS business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.
Color-coded ConnectorsColor-coded connectors enable easy identification and cable-matching, speeding up the production line. investments in supporting hardware.
Q-Slot
Effortless PCI Express component removal
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!
Q-DIMM
Easy memory removal
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – removing memory is that simple!
Intel CPU and chipset features
Intel® H310 Chipset
The Intel® H310 is a single-chipset design that supports 8th Generation Intel® Core™ LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H310 chipset provides a maximum of four USB 3.1 Gen 1 ports, four SATA 6Gbps ports, and 10Gbps M.2 and PCIe 2.0 lane-speed support, for faster data retrievals. Intel H310 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for 8th Generation Intel LGA1151 Core processors
This motherboard supports 8th Generation Intel® Core™ processors in the LGA1151 package, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
